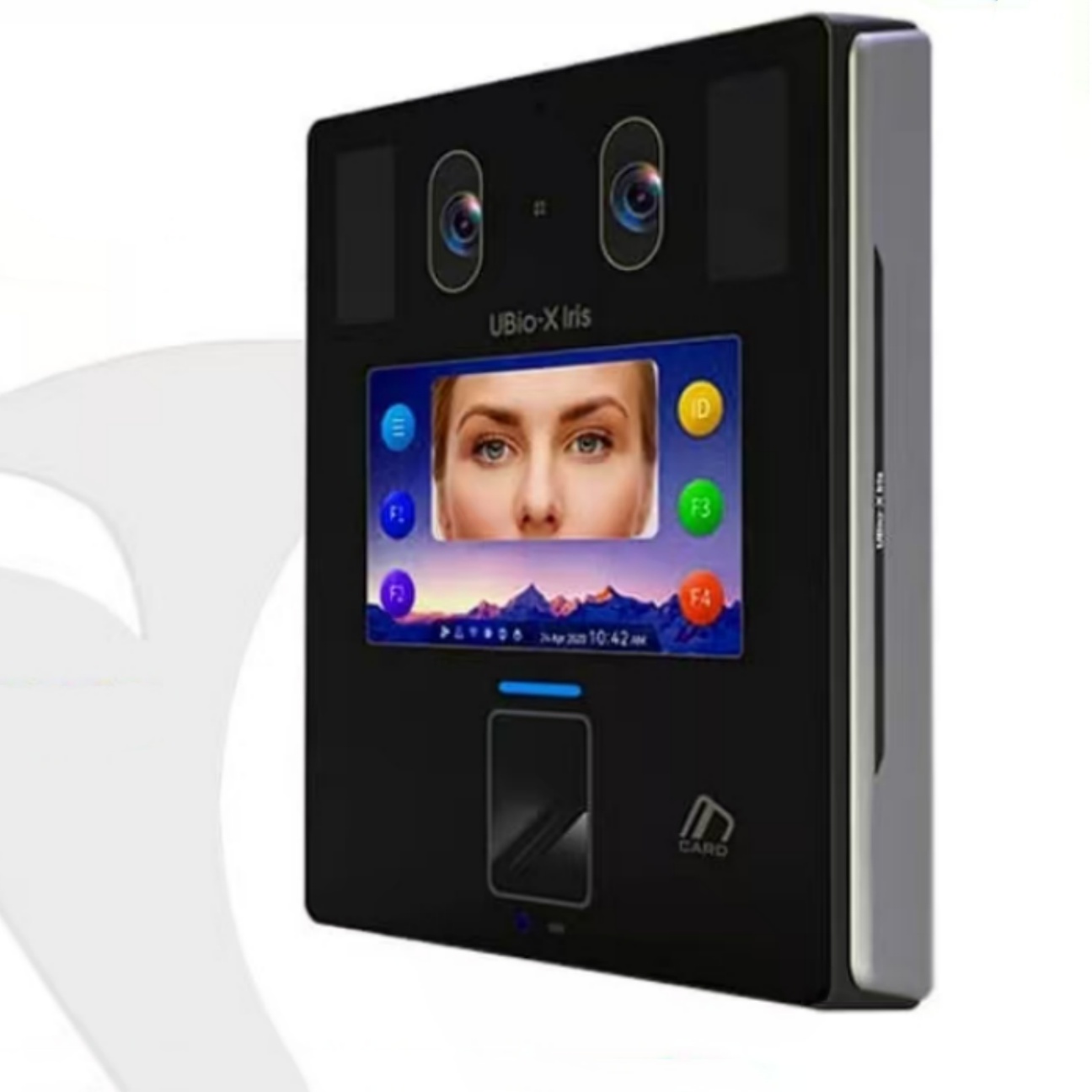

| Model | UBio-X Iris |
| Authentication Method | Iris/Fingerprint/Card |
| Dust/ Water Resistance | X |
| Memory | Max Users | Card | (1:1) / (1:N) | 200,000 |
Fingerprint
(Base on one finger enrollment per user) | 1:1 | 200,000 |
| 1:N | 50,000 |
Iris
(Base on 2 eyes (L/R)
enrollment per user) | 1:1 | 200,000 |
| 1:N | 20,000 |
| Templates | Fingerprint | 1:1 | 400,000 |
| 1:N | 100,000 |
| MAX Templates per Finger | 2 |
| MAX Finger per User | 10 |
| Iris | 1:1 | 400,000 |
| 1:N | 40,000 |
| MAX Templates per Eyes | 2 |
| MAX Templates per User | 4 |
| Logs | 10,000,000 |
| Images | 20,000 |
| Communication | with server | TCP/IP |
| other | USB |
| Wireless LAN(Wi-Fi) | Optional |
| Wiegand OUT | O |
| RS232 | O |
| RS485 | O |
| Wiegand IN | O |
| Display | LCD | 5”Color Touch |
| Backlight | O |
| Card | 125khz-EM | O |
| HID Prox | O |
| HID iclass | O |
| 13.56MHz Smart Card | O |
| Embedded Camera | Dual |
| Keypad | Touch Screen |
| Function keys | SOFT |
| Door Phone | X |
| FP Sensor (Platen Area) | Nscan-FM : 16.6 x 21.6mm |
| Resolution | 500dpi |
| Dimension(W) X (H) X (D) mm | 160.6 x 214 x 45.4mm |
| FRR /FAR | 0.1% / 0.0001% |
| Operating Illuminance (lux) | X |
| Operating Temperature | -20 ~ 55℃ |
| Opertating Software (Server solution) | UBio Alpeta |
| Mobile Access Card System(NFC/BLE) | Mobile Phone Specification | iPhone : iOS 10.0 or later / BLE4.2 or later
Android : Android 6.0 or later / Supports NFC |
| Security / Encryption | Azure Key Vault / AES-256 |
| Distance / Range | Under 10cm (It may differ depending on smartphones) |
| Server Platform | On-Premise / Cloud
|
