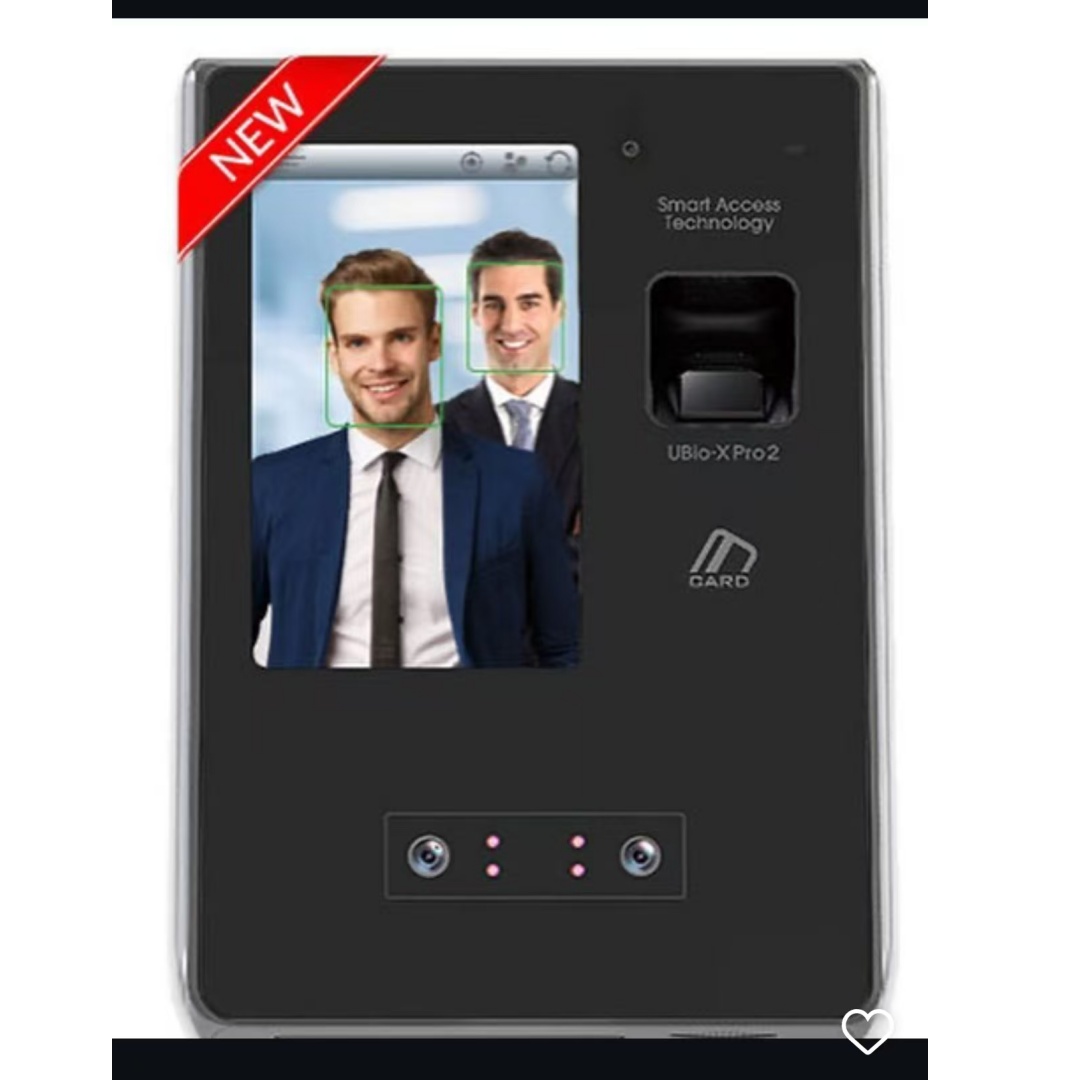

UBio-X Pro Face Recognition Access Control

UBio-X Pro

Advanced Face & Fingerprint Recognition Terminal

UBio-X Pro, a face authentication system

equipped with the world’s highest performance

facial recognition algorithm

市场价： 0.00

价格： 0.00

UBio-X Pro

Advanced Face & Fingerprint Recognition Terminal

UBio-X Pro, a face authentication system

equipped with the world’s highest performance

facial recognition algorithm

Specifications

Model				UBio-X Pro
Authentication Method				Face/Fingerprint/Card
Dust/ Water Resistance				X
Memory	Max Users	Card	(1:1) / (1:N)	500,000
		Fingerprint (Base on one finger enrollment per user)	1:1	500,000
			1:N	100,000
		Face (Base on five Face enrollment per user)	1:1	200,000
			1:N	30,000
	Templates	Fingerprint	1:1	1,000,000
			1:N	200,000
			MAX Templates per Finger	2
			MAX Finger per User	10
		Face	1:1	1,000,000
			1:N	150,000
			MAX Templates per User	10
	Logs			10,000,000
	Images			20,000
communication	with server			TCP/IP
	Other			SD Card
	Wireless LAN(Wi-Fi)			Optional
	Wiegand OUT			O
	RS232			O
	RS485			O
	Wiegand IN			O
Display	LCD			5”Color Touch
	Backlight			O
Card	125khz-EM			O
	HID Prox			O
	HID iclass			O
	13.56MHz Smart Card			O
Embedded Camera				Dual
Keypad				Touch Screen
Function keys				SOFT
Door Phone				X
FP Sensor (Platen Area)				15.5 X 19 mm
Resolution				500dpi
Dimension(W) X (H) X (D) mm				149.7 x 208 x 89.7mm
FRR /FAR				0.1% / 0.0001%
Operating Illuminance (lux)				30,000
Operating Temperature				-20 ~ 60℃
Opertating Software (Server solution)				UBio Alpeta
